In the open ocean, winds and currents can move oil 20 miles or more per day and an offshore oil spill can reach the coastline in less than 24 hours, yet most operators only learn of its trajectory after the damage has already been done (NOAA, 2020).
Each passing hour brings not merely environmental risk but mounting legal exposure, reputational damage, and operational loss. Satellite monitoring can tell you where the spill is right now. Only one approach can tell operators where a spill is heading: numerical trajectory modelling.
Figure 1. The local community at Cemaranaya Beach participated in cleaning up an oil spill originating from a nearby offshore oil and gas block (Source: The Jakarta Post, 2019)
The Real Challenges of Oil Spill Monitoring
Table 1. Comparison of satellite images and numerical methods
| Aspect | Satellite Images | Numerical Modelling |
|---|---|---|
| Data Availability | Constrained by revisit schedule and cloud-free conditions | Available on-demand, independent of weather conditions |
| Prediction Capability | None, provides current-state snapshot only | Full trajectory forecast: estimated arrival time, affected zones, spill extent over 24–72 hours |
| Spill Detection | Direct detection of surface slicks when satellite overpass coincides with incident | Requires confirmed source input (location, volume, oil type) |
| Weather Interference | Optical sensors (Sentinel-2, Landsat) blocked by cloud cover; SAR operational in all-weather but subject to look-alike ambiguity | Model runs are weather-independent; forecast accuracy depends on quality of metocean forcing inputs |
| Operational Cost | High commercial imagery acquisition and routine processing costs | Automated model runs reduce long-term operational expenditure |
| Response Posture | Reactive, response initiated after spill is confirmed and detected | Proactive and actionable forecasts available before spill reaches critical or sensitive areas |
It is in this window that the consequences of uncertainty are most severe: containment resources must be deployed, sensitive areas must be pre-emptively protected, and response priorities must be established all before the full trajectory of the spill is known. Numerical modelling closes that gap by transforming real-time oceanographic and meteorological data into actionable forecasts, giving operators the foresight to act rather than react.
Oil Spill Trajectory: From Reactive to Predictive
Oil spill numerical modelling is a physics-based computational approach that simulates the movement and behaviour of oil in the marine environment by integrating multiple environmental forcing factors simultaneously. Its purpose extends well beyond detection, it is designed to predict where a spill will travel and when it will arrive, enabling decision-makers to act before consequences become irreversible.
At the core of most operational models is the Lagrangian particle-tracking approach. Oil spill models commonly represent oil as many numerical particles, each carrying a given mass of oil, transported by wind, waves, and currents and subject to a random walk process to model turbulent diffusion. The governing equation of particle motion is expressed as:
dxi dt = Vi(xi, t)
Where:
| xi | : Position of a particle in Lagrangian's variable space |
| Vi | : Represents the velocity field at the particle's location with respect to its Lagrangian position |
This model operates by tracking thousands of virtual particles that represent oil droplets using a Lagrangian approach. Each particle moves according to the physical laws governing ocean dynamics, enabling the simulation of oil movement and dispersion in marine environments.
According to Figure 2 until Figure 5, snapshot of the simulated oil particle distribution when most of the released oil particles became stranded along the coastline near Karangsong Beach, Indramayu. The simulation demonstrates the transport pathways and final accumulation areas of the spilled oil, highlighting coastal zones that are potentially at the highest risk of being affected by the oil spill. Such results can support environmental impact assessments and assist decision-making for mitigation and response planning.

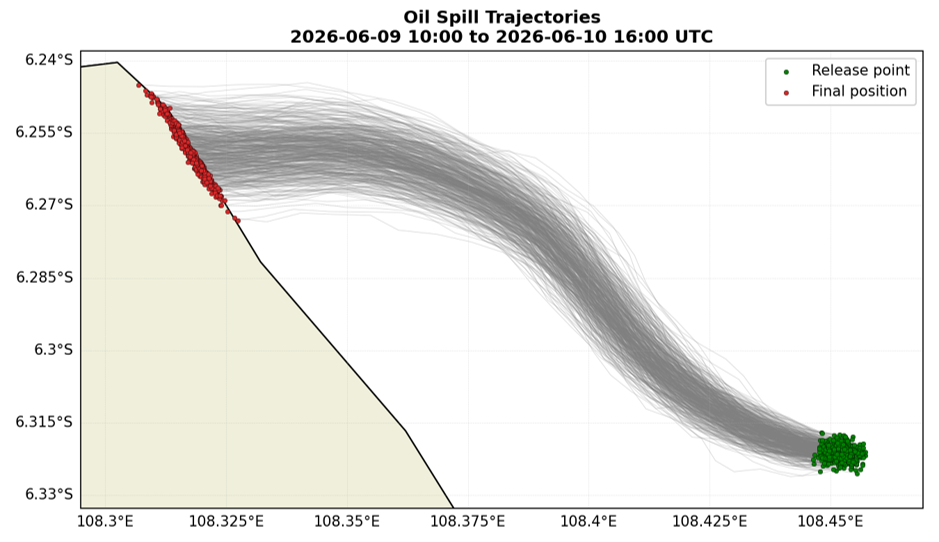

Figure 2. Distribution of simulated oil particles in the North Java Sea, showing stranded oil along the coastline (red points), initial release positions (green points), and particle trajectories used to identify coastal areas at risk of contamination (grey lines)

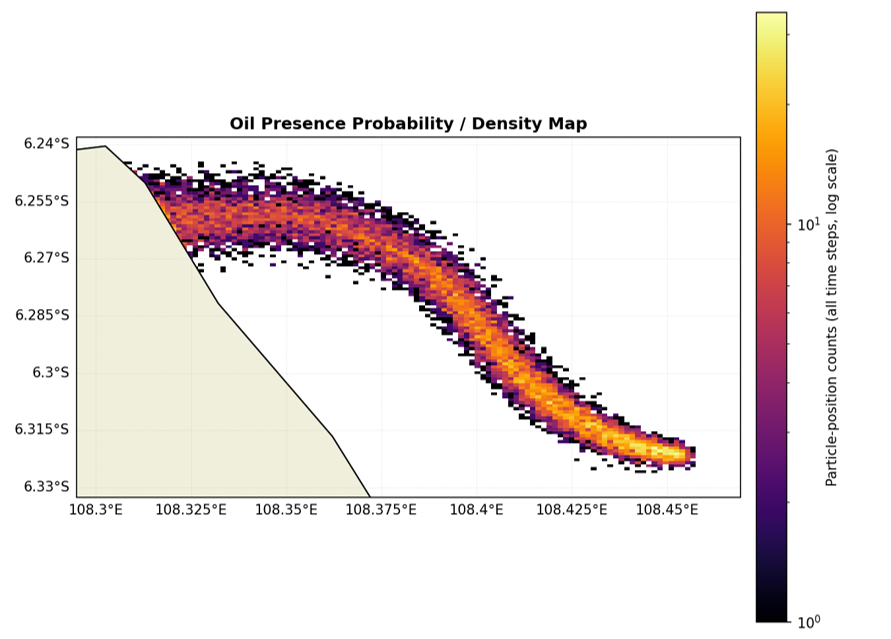

Figure 3. Example of oil presence probability map

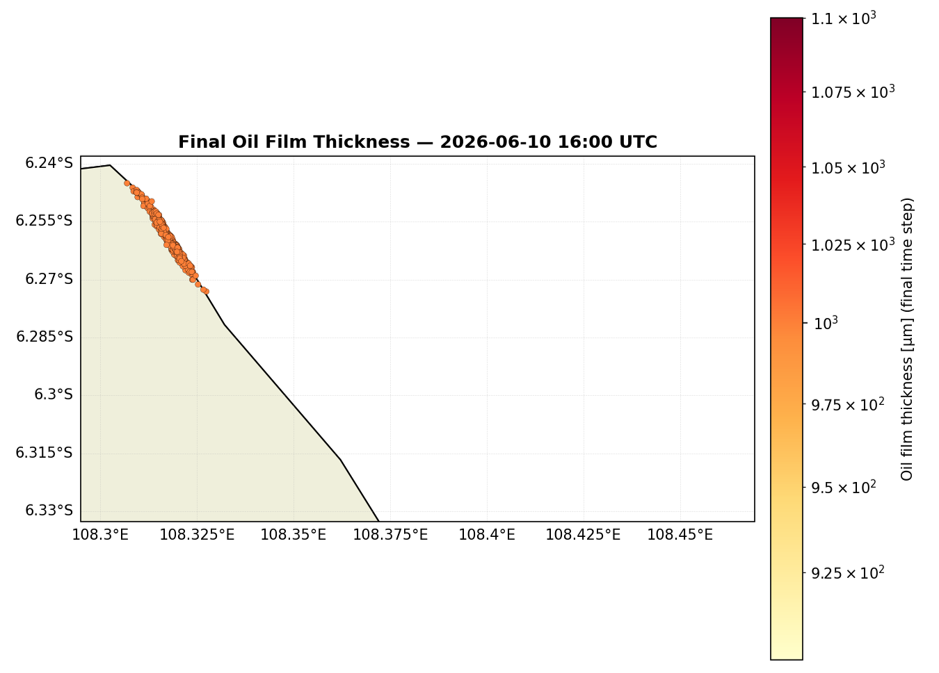

Figure 4. Oil film thickness in final time step

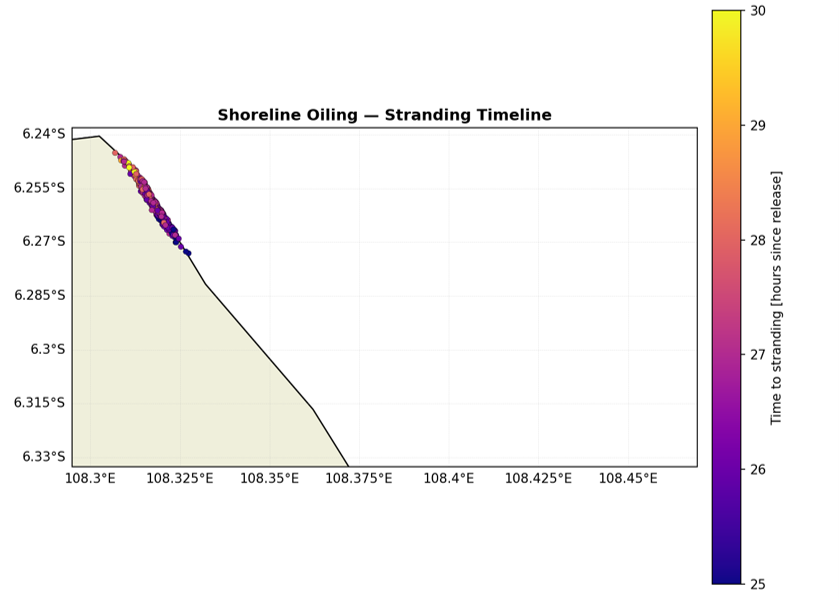

Figure 5. Distribution of time to stranding each oil particle
In Figure 6, Temporal evolution of oil spill behavior during the simulation period, illustrating changes in oil mass and volume distribution over time. The figure presents the proportion of oil remaining on the sea surface, dispersed into the water column, evaporated into the atmosphere, and stranded along the coastline. In addition, the evolution of oil weathering properties and environmental forcing conditions is shown to provide insight into the processes controlling oil transport and transformation. This analysis can be used to estimate the potential environmental impact and persistence of the oil spill in the affected area.

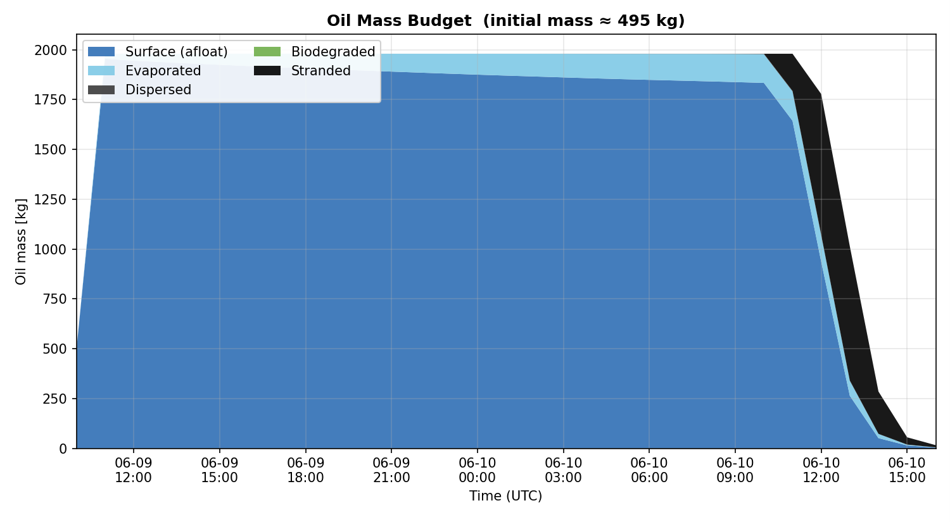

Figure 6. Example of simulated temporal oil spill evolution fate and environmental forcing, including changes in surface oil (blue), stranded oil (black), dispersed oil (grey), evaporated oil (cyan), biodegraded (green) during the simulation period.
Strategic Advantages of Oil Spill Trajectory Modelling
Investing in an oil spill trajectory modelling system is not only a technical decision but also a strategic business investment that directly supports financial resilience, operational continuity, and long-term license to operate. By predicting the movement and fate of spilled oil, organizations can shift from reactive response to proactive risk management.
At least 10 villages and seven beaches in West Java were affected by the oil spill originating from Pertamina’s Offshore North West Java (ONWJ) block, which polluted the surrounding waters for more than two weeks. According to Dharmawan, it would take approximately eight weeks from the date of the statement, or ten weeks from the onset of the incident, to stop the leak and fully seal the damaged YYA-1 well. Data from Pertamina Hulu Energi (PHE) show that the capital expenditure for the YYA-1 ONWJ project in 2019 amounted to US$85.4 million. Although this incident represents an extreme case, it demonstrates how spill trajectory and coastal exposure can substantially influence the magnitude of both environmental damage and financial losses (The Jakarta Post, 2019).
Predictive modelling provides measurable value by forecasting where and when oil may spread, allowing response teams to prioritize protection efforts, allocate resources efficiently, and minimize contamination. Faster and more targeted intervention reduces clean-up costs, limits ecological damage, and accelerates operational recovery.
In addition to operational benefits, numerical modelling strengthens regulatory compliance by providing documented and scientifically defensible evidence of preparedness. When integrated into an Oil Spill Contingency Plan (OSCP), simulation outputs generate reproducible records that support audits, insurance processes, and liability assessments, making oil spill modelling an essential tool for both environmental stewardship and business protection.
Two Service Modes, Scaled to Your Operational Needs
We are currently developing a dedicated oil spill trajectory modelling service, purpose-built for offshore oil and gas operators in Indonesian waters. This service represents our commitment to raising the standard of spill preparedness and response capability available to the industry moving beyond reactive detection toward genuinely predictive operational intelligence.
On-Demand Simulation
Trajectory forecasting activated immediately upon incident notification. A full 72-hour predictive simulation including spill extent maps, estimated coastal arrival times, and high-risk zone identificationContingency Planning Support
Scenario-based simulations developed specifically to populate and validate your Oil Spill Contingency Plan (OSCP). Rather than relying on historical precedent or generic assumptions, your OSCP is supported by site-specific, model-derived risk analysis across multiple release scenarios providing the quantitative rigour that regulators increasingly expect and that insurance underwriters increasingly reward.
